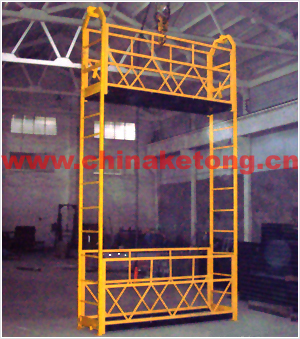

Double layer suspended platform


     ◎ Main parts


1

    Model

    ZLP500

2

    Rated load

    500kg

3

    Llifting speed

    9.6m/min+0.5

4

    LxWxH

    (2500×3)×690×(1180×2)mm

5

    Length of platform

    1m—7.5m

6

    Standard length

    7.5m(2.5m×3)

7

    Motor power

    2×2.2kw

8

    Brake torque

    15Nm

9

    Adjusted rang of lock angle

    3。-8

10

    Rope lock distance

    ≤100mm

11

    Protrusion of front beam

    1500mm

12

    Counter weight

    25kg×30pcs

13

    Steel rope Dia.

    8.6mm

14

    Standard height

    100m

15

    Rated rotation speed

    1420r/min

16

    Voltage

    380V

17

    Frequency

    50HZ
