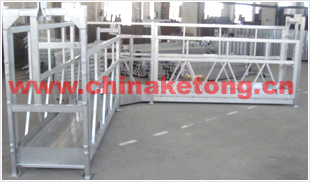

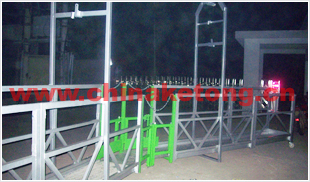

Adjustable suspended platform



     ◎ Main parts



1

   Model

    ZLP630 or ZLP800

2

   Rated load

    800kg

3

   Lifting speed

    9.6m/min+0.5

4

   Length of platform

    2m—-6m

5

   Standard length

    as requested

6

   Motor power

    3×1.5kw

7

   Brake torque

    15Nm

8

   Adjusted rang of lock angle

    3。-8。

9

   Rope lock distance

    ≤100mm

10

   Protrusion of front beam

    1500mm

11

   Counter weight

    25kg×30pcs

12

   Steel rope dia.

    8.3mm

13

   Standard height

    100m

14

   Rated rotation speed

    1420r/min

15

   Voltage

    380V

16

   Frequency

    50HZ
