ZLP630

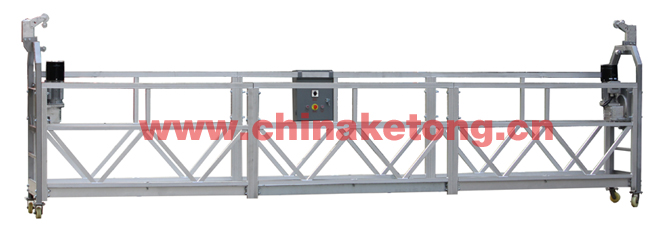

630 Aluminum

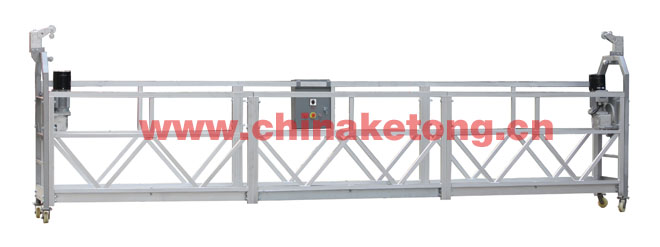

630 HDG

  Main parts

1.Lifting suspension mechanism and counter weight

The height of the platform can be within 1150-1800mm with arm which can be stretched out and drawn back, it can be widely used parapet and complicated building in different, height, and we can also supply customized platform to meet different requirement from the customers.


Technical Parameters



    Protrusion of front beam

    1500×1800mm

    Rated Lifted load

    8KN×2

    Distance between front support and ground

    1200mm

    Max distance between front support to the rear one

    4600mm


 ZLP630 Technical Parameters


1

    Model

    ZLP630

2

    Rated load

    630kg

3

    Lifting speed

    9.6m/min+0.5

4

    LxWxH

    (2000×3)× 690×1180mm

5

    Length of platform

    1m—-6m

6

    Standard length

    6m(2m×3)

7

    Motor power

    2×1.5kw

8

    Brake torque

    15Nm

9

    Adjusted rang of lock angle

    3。-8。

10

    Rope lock distance

    ≤100mm

11

    Protrusion of front beam

    1500mm

12

    counter weight

    25kg×36pcs

13

    steel rope Dia.

    8.3mm

14

    steel rope Dia.

    100m

15

    Rated rotation speed

    1420r/min

16

    Voltage

    380V

17

    Frequency

    50HZ
